Mechanical processing
-
Extruder frame and
extruder chassis- Weight: approx. 9 tons per unit
- Length: 4.800 mm
- Width: 3.800 mm
- Height: 500 mm
Frame for sheet metal forming
individual parts / components for the frame (outside)- Weight: approx. 7 tons
- Length: 3.000 mm
- Width: 2.000 mm
- Height: 2.500 mm
Support frames for extruders
- completely manufactured
- mechanically machined
- primed and lacquered
- railing assembly
- aluminium duet plates
-
Press ram for 1,000 t double-column press / frame press (cold pressing)
- Weight: 56 tons
- Length: 5.500 mm
- Width: 2.900 mm
- Height: 2.700 mm
Press ram for 500 t double-column press
- Weight: 22 tons
- Length: 3.500 mm
- Width: 2.000 mm
- Height: 2.000 mm
Table top for 800 ton hydraulic press
- Weight: 30 Tonnen
- Length: 4.500 mm
- Width: 2.300 mm
- Height: 400 mm
Press head piece
with press ram- Weight: 17 tons
- Length: 4.000 mm
- Width: 2.500 mm
- Height: 1.400 mm
- annealed
- sandblasted
- mechanically machined
- primed and lacquered
-
Extruder frame for blow moulding
- Weight: 17 tons
- Length: 12.000 mm
- Width: 3.000 mm
- Height: 1.800 mm
- lacquered
- completely manufactured
Machine frame
- completely machined
- lacquered
- ready for delivery
-
Machine base frame
(e.g. for continuous casting plants)- Weight: 7 tons
- Length: 4.500 mm
- Width: 2.700 mm
- Height: 500 mm
2 machine base frames for extruders
- Weight: 6 tons per unit
- Length: 5.500 mm
- Width: 2.200 mm
- Height: 700 mm
- completely machined
- lacquered
- ready for delivery
Miniature ram (blank)
Miniature ram (completely machined)- Weight: 3,5 tons
- Length: 1.400 mm
- Width: 1.400 mm
- Height: 1.200 mm
- completely machined
-
Machine undercarriage
(metallurgy and rolling mill technology)- completely manufactured
- mechanically machined
- primed and lacquered
-
Extruder frame
- Weight: 8 tons
- Length: 5.000 mm
- Width: 4.500 mm
- Height: 500 mm
- completely manufactured
- mechanically machined
- primed and lacquered

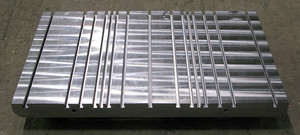

Machine table
- Weight: 10 tons
- Length: 3.000 mm
- Width: 3.000 mm
- Height: 1.500 mm
- annealed
- sandblasted
- mechanically machined
Machine stand
- Weight: 35 Tonnen
- Length: 4.500 mm
- Width: 4.500 mm
- Height: 3.500 mm
- annealed
- sandblasted
- primed and lacquered
Attachment of final compression cylinder (recycling plant)
- Weight: 6 tons
- Length: 3.000 mm
- Width: 2.000 mm
- Height: 1.500 mm
- annealed
- sandblasted
- primed and lacquered
Bottom parts of presses
- Weight: 4,5 tons per unit
- Length: 2.000 mm
- Width: 1.500 mm
- Height: 500 mm
- annealed
- sandblasted
- primed and lacquered
- mechanically machined
Mechanical machining
of a press ram
- Weight: 15 tons
- Length: 3.500 mm
- Width: 1.950 mm
- Height: 1.000 mm
- annealed
- sandblasted
- primed and lacquered
Traverses
- sandblasted
- primed
- mechanically machined
- lacquered
Press ram
- Weight: 8 tons
- Length: 1.500 mm
- Width: 1.500 mm
- Height: 1.600 mm
- completely mechanically machined
Mounting plate
- Weight: 7,2 tons
- Length: 2.500 mm
- Width: 2.000 mm
- Height: 180 mm
- annealed
- sandblasted
- mechanically machined
4 machine slides
- Length: 500 mm
- Width: 500 mm
- Height: 800 mm
- annealed
- mechanically machined
Gearbox housing (tunnel boring machine)
- Weight: 56 tons
- Diameter: 4.800 mm
- Height: 1.800 mm
- partial assembly with pre-machined hub
Machine stand
in unmachined condition
- Weight: 20 tons
- Length: 3.000 mm
- Width: 4.000 mm
- Height: 2.800 mm
- annealed
- sandblasted
Hydraulic plate shears (sheet metal working)
(machined table surface)
- Weight: 15 tons
- Length: 4.000 mm
- Width: 2.500 mm
- Height: 3.000 mm
